Capsule Filling Machines

Automatic Capsule Filling Machine

Automatic Capsule Filling Machine suitable to fill powder/pellets into hard gelatin capsules. The machine works on temping principle. The powder is formed into a slug and is delivered to the body of the capsule. The machine is designed to give output of 70,000 capsules per hour with high filling accuracy and can fill capsule sizes 00, 0, 1, 2, 3, 4. The actual production depends on the quality of capsules, characteristics of filling powder/pellets and humidity condition. The machine is made as per GMP standards. All contact parts are made from Stainless Steel 316 and other non contact parts are made from Stainless Steel 304 material.

The basic machine supplied to fill powder with one set of change parts as per users requirements. Pellets filling arrangement can supply as per customer’s specific requirements. Automatic Capsule Filling Machine can work as complete system of Fully Automatic Capsule Filling Line by attaching additional equipments as Online Capsule Polishing Machine, Dust Extractor, Damage Capsule Sorter and Empty Capsule Ejector.

Semi Automatic Capsule Filling Machine

Semi Automatic Capsule Filling Machine is designed for precision manufacturing requirements of modern pharmaceutical procedures. The machine provides a high Degree of automation with higher levels of filling weight accuracy. Capsule Filling Machine is suitable to fill capsules of all sizes with powder, granules or pellets. Machine is made as per GMP standard, has all Stainless Steel covering and gives output of 35000 to 47000 capsules per hour.

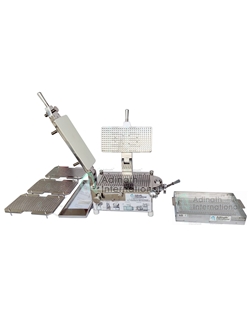

Manual Capsule Filling Machine

Manual Capsule Filling Machine is widely uses form of capsule filling. Machine is designed and manufactured with utmost care to handle all capsule sizes ranging from “00” to “5” and to give you trouble free services year after year. Machine is easy to operate, give production with minimum rejection and no weight variation. It is capable to fill powders, pellets in all sizes of hard gelatin capsules.

Though all the operations are manual, the machine calls for precision machined components and assembled with highly skilled personnel.

The Manual Capsule Filling Machine is widely uses in Research Laboratories, Academic Institution, Herbal/Ayurvedic preparation and medium to small scale manufacturing industries

There is option of buying an Automatic Capsule Loading Machine to speeds up the production output with filling machine, as the maximum time taken by filling machine is for loading of capsules on the loading trays of the capsule filler.

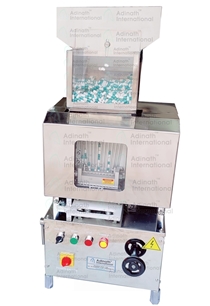

Automatic Capsule Loading Machine

Automatic Capsule Loader is sturdy, compact in design and simple in operation. Capsule Loader is suitable to fill loading tray of manual capsule filling machine automatically. Machine is preferred choice of medium & small scale pharmaceutical units for producing capsule products. It gives higher production at lower cost and better standards of accuracy.

Loader automatically loads empty capsule in the loading plate for manually operated capsule filling machine, hence it take normally 5 minutes to load empty capsule in 300 holes loading plate manually, this machine cuts down that time to only 30 second. With the help of one Capsule Loader you can fill loading plates of 2-3 capsule filling machines. Thus increase the production on one hand and reduce the number of operator & equipment coast on other hand.
